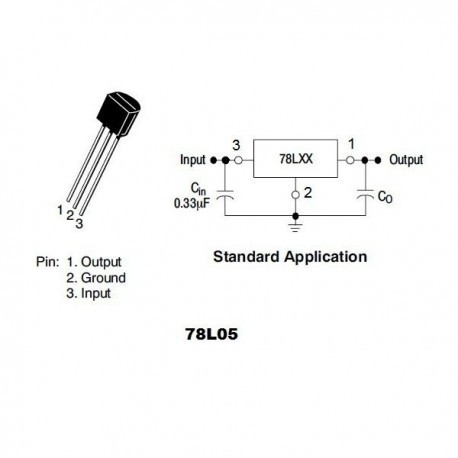

- Persamaan Transistor 78l05 Yang
S8050 Pin Description
Daftar Persamaan Transistor
Pin Number | Pin Name | Description |
1 | Emitter | Current Drains out through emitter |
2 | Base | Controls the biasing of transistor |
3 | Collector | Current flows in through collector |
Transistor Regulator Tv 7815 Voltage Regulator Pinout, Datasheet, Equivalents & Specifications Jual IC Regulator 78l05 Smd 5V 100mA 3 Pin TO-92 Penstabil tegangan di Lapak Electronics Bot Bukalapak Low-dropout regulator - Wikipedia √Skema Rangkaian Power Supply Regulator 9V 3A CT dan Simetris Sederhana - Andalan Elektro. . Output transistor safe-area compensation. Available in 3-pin TO-220, TO-252, and TO packages. Output voltages of 5 V and 15 V 2 Applications. Electronic point-of-sale. Motor drives. Building automation. Appliances and white goods. TVs and set-top boxes 3 Description The LM341 and LM78M05 three-pin positive voltage. 4001 2SC5584 2S0765 2SA1939 CNY17F-2 4002 2SD730/2SB694 3S0765RF 2SC5144 D2111AL-4 4011 2SK1460 5H0380R 2SC5196 D7756C 4012 2SK2223 5L0265R 2SC5682 DL3 1002DS 4013 2SK2333 5L0365R 2SD5702 DNA1001D 4014 74HC4053/TC 5S0965 74LS374T/PC 72MM DNA1002C 4015 74HC4053D 39MM 82C55AFP2 74LS377 52MM DNA1002D 4016 74HC46AE ADC0832CCN 74LS393N/SN.
Features
- Low Voltage, High Current NPN Transistor
- Small Signal Transistor
- Maximum Power: 2 Watts
- Maximum DC Current Gain (hFE) is 400
- Continuous Collector current (IC) is 700mA
- Base- Emitter Voltage (VBE) is 5V
- Collector-Emitter Voltage (VCE) is 20V
- Collector-Base Voltage (VCB) is 30V
- High Used in push-pull configuration doe Class B amplifiers
- Available in To-92 Package
Note: Complete Technical Details can be found at the S8050 datasheet given at the end of this page.
Complementary PNP Transistors
S8550
Alternative NPN Transistors
S9014, MPSA42, SS8050, BC547, 2N3904, 2N2369, 2N3055, 2N3904, 2N3906
S8050 Equivalent Transistors
2N5830, S9013
Brief Description on S8050
S8050 is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. It has a maximum gain value of 400; this value determines the amplification capacity of the transistor normally S8050. Since it is very high it is normally used for amplification purposes. However at a normal operating collector current the typical value of gain will be 110. The maximum amount of current that could flow through the Collector pin is 700mA, hence we cannot drive loads that consume more than 700mA using this transistor. To bias a transistor we have to supply current to base pin, this current (IB) should be limited to 5mA.
When this transistor is fully biased then it can allow a maximum of 700mA to flow across the collector and emitter. This stage is called Saturation Region and the typical voltage allowed across the Collector-Emitter (VCE) or Collector-Base (VCB) could be 20V and 30V respectively. When base current is removed the transistor becomes fully off, this stage is called as the Cut-off Region.
S8050 in Push-Pull Configuration
As mentioned in the features the S8050 transistor is commonly used in push pull configuration with Class B amplifier. So let us discuss how that is done.
A push pull amplifier, commonly known as Class B amplifier is type of multistage amplifier commonly used for audio amplification of loudspeakers. It is very simple to construct and requires two identical complimentary transistors operate. By complimentary it means that we need a NPN transistor and its equivalent PNP transistor. Like here the NPN transistor will be S8050 and its equivalent PNP transistor will be S8550. A simple circuit diagram of the Class B amplifier with the using the S8050 is shown below.
Applications
Data Persamaan Transistor
- Audio Amplification Circuits
- Class B Amplifiers
- Push pull Transistors
- Circuits where high gain is required
- Low signal applications
2D model of the component
If you are designing a PCB or Perf board with this component then the following picture from the S8050 transistor Datasheet will be useful to know its package type and dimensions.
